Taw qhia

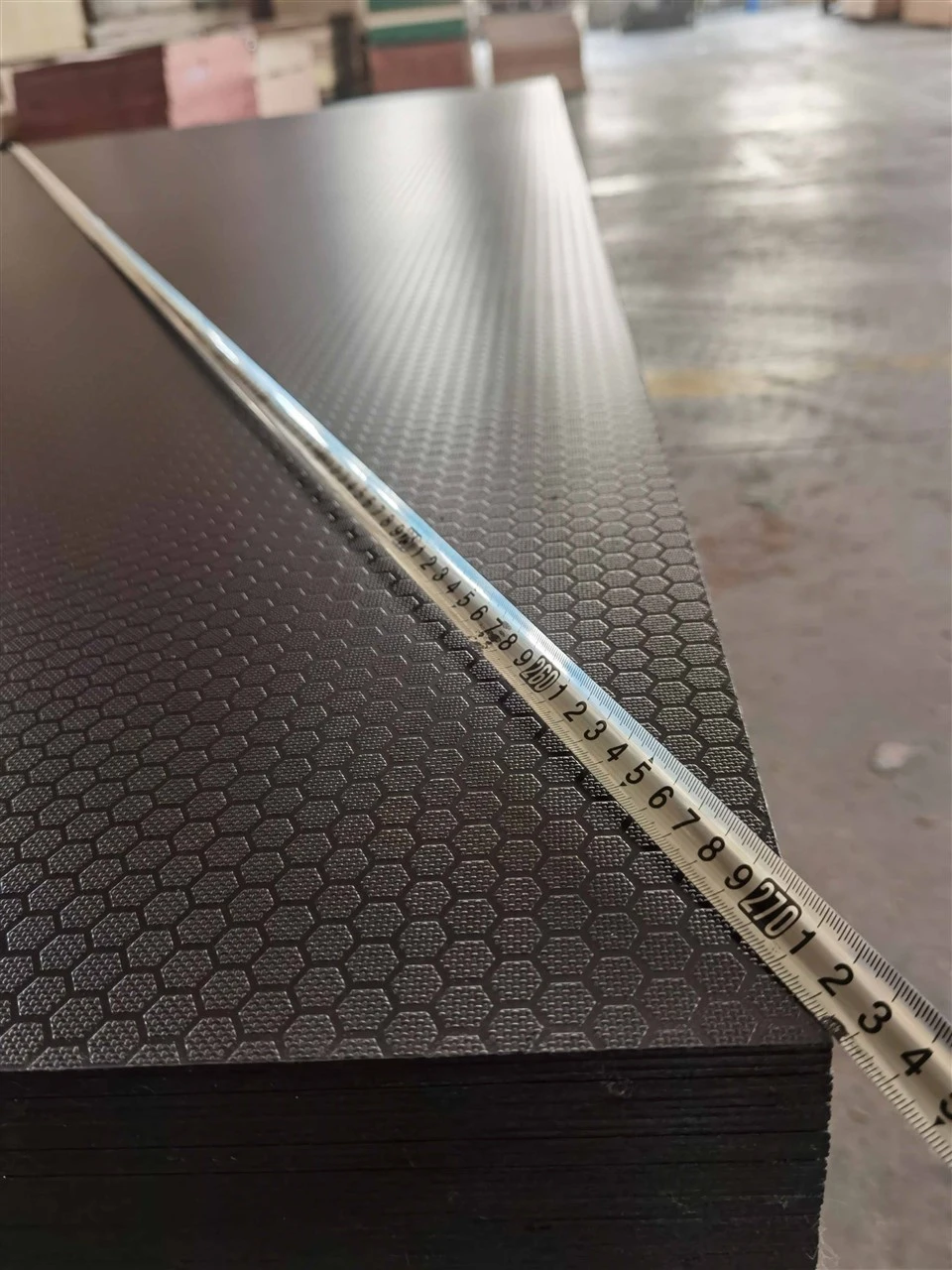

Lub Anti-slip plywood yog ib qho ruaj khov heev, resin-coated structural wood vaj huam sib luag featuring ib tug tsa, textured qauv ntawm ib los yog ob lub ntsej muag.
Khoom Specifications
|
Yam khoom |
Specification |
|
Slip Resistance |
R11-R13 tau ntawv pov thawj (DIN 51130 / BS 7976-2) |
|
Zaj duab xis nto |
220g / m² lossis 240g / m² phenolic wiremesh / hexagonal kev ntxhib los mos |
|
Abrasion Resistance |
>3,500 cycles (EN 438-2) |
|
Waterproof Bonding |
Phenolic WBP nplaum, 72-teev boiling xeem dhau |
|
Qhov kub thiab txias |
-30℃rau +60 degree |
|
Cov khoom siv tseem ceeb |
Birch / Birch -Pine / Eucalyptus veneer |
|
Khoov zog |
MOR Ntau dua lossis sib npaug rau 35 N / mm² (kab ib sab), Ntau dua lossis sib npaug rau 22 N / mm² (hla cov nplej) |
|
Thickness kam rau ua |
± 0.3 hli |
|
Qauv |
18mm vaj huam sib luag nrog 13 plies |
|
Point Load Capacity |
Mus txog 850 kg |
Kev siv kev tsim kho
Scaffolding Platforms:Wiremesh nto nrog DIN 51130 R13 plam-kev ntsuas ntsuas, tsim kho rau ntau- zaj dab neeg.
Access Ramps:Cov neeg taug kev thiab lub teeb - cov tsheb thauj mus los hauv tsev.
Formwork Concrete Decking:Alkali-tiv taus, tsis muaj dej taug kev qhov chaw muaj ntawv pov thawj rau 15-20 pob zeb sib xyaw ua ke raws li kev saib xyuas tus qauv.
Modular Chav Tsev Flooring:Subfloors thiab cov ntaub pua plag rau cov chaw ua haujlwm ib ntus thiab cov cuab yeej txawb, siv 120g / m² phenolic txheej.
Tsheb & Trailer txaj:Kev cuam tshuam -tiv taus, siab- load flooring rau flatbed utility trailers thauj compactors thiab excavators.
Custom Options
Standard Dimensions:Muaj nyob rau hauv cov qauv ntawv loj: 1220 x 2440mm, 1250 x 2500mm, thiab 1500 x 3000mm.
Thickness Ntau:Muaj nyob rau hauv 9mm, 12mm, 15mm, 18mm, 21mm, 24mm, thiab 27mm, tsim rau EN 315 thickness kam rau ua qauv (± 0.5mm).
Xim Variations:Muaj nyob rau hauv cov xim av tsaus, dub, pob zeb grey, thiab kev nyab xeeb daj rau ntawm - thaj chaw muaj kev nyab xeeb thiab ua raws li.
CNC ua:Factory- ncaj nraim kev cai ntug-profiling (tus nplaig thiab zawj), countersunk drilling, thiab layout routing raws li pom zoo architectural CAD kos duab.
Yam tsawg kawg nkaus Order Quantity (MOQ):1 Tag Nrho Cov Thawv Thauj Khoom (FCL), xa 22-24 metric tons rau kev xa khoom hauv hiav txwv.
Kev Tswj Xyuas Zoo
Moisture Stabilization:Sab hauv plies yog kiln- ziab kom qhuav kom nruj 6% mus rau 10% noo noo cov ntsiab lus ntau yam los tiv thaiv chav blistering, warping, thiab delamination.
Kub nias:Cov vaj huam sib luag sib txuas ntawm 130℃txog 140℃nrog sab nrauv-qib WBP phenolic kua nplaum, dhau 72-teev boiling xeem thiab ua tau raws li EN 314-2 Class 3 cov qauv kev sib txuas.
Nto Calibration:Kev lag luam ob -sab sanding ua ke nrog automated laser sensors los xyuas kom meej lub ntsej muag zoo ib yam -rau- rov qab calibration hla batch.
Batch Traceability:Txhua qhov khoom xa tuaj yog stamped nrog tus lej taug qab txuas ncaj qha rau nws cov ntaub ntawv raw khoom thiab cov ntaub ntawv pov thawj ntawm lub Hoobkas.
Ntim & Logistics
Reinforced Ntim:Kev ruaj ntseg ntawm cov khoom siv ntoo nrog ntau- txheej plywood ntug tiv thaiv ntawm txhua sab kom tiv taus ntau- txheej txheem forklift hla- docking.
Kev tiv thaiv dej noo:Pallets kaw nyob rau hauv UV-resistant, multi- txheej stretch qhwv nrog reinforced ntug tiv thaiv los thaiv cov av noo thiab ntsev tsuag thaum lub sij hawm hla hiav txwv.
Ntim Volumetrics:Standard 40ft High Cube (HQ) ntim haum rau 18 mus rau 20 pallets (400 mus rau 850 nplooj ntawv, nyob ntawm thickness specifications).
Export Cov ntaub ntawv:Kev muab tag nrho ntawm Daim Ntawv Sau Npe huv (B/L), Daim Ntawv Pov Thawj Keeb Kwm (C/O), Daim Ntawv Teev Npe, Daim Ntawv Pov Thawj Ua Lag Luam, thiab Ntawv Pov Thawj Phytosanitary.
Ua raws
Daim ntawv pov thawj tus qauv
Ua raws li CE Marking raws li EN 139860.
Formaldehyde Emissions
Certified rau European E1 thiab US CARB Phase 2 / EPA TSCA Title VI cov qauv.
Ntoo Traceability
Chain - ntawm - cov ntaub ntawv saib xyuas muaj rau 100% FSC lossis PEFC certified ntoo.
Third-Party Audits
Cov qauv kuaj tsis tu ncua tau txheeb xyuas los ntawm cov tsev kawm ntawv ywj pheej, raug lees paub, suav nrog SGS, TÜV, lossis Intertek.
Kev ntsuas hluav taws
Rated Class D-s2, d0 raws li EN 13501-1, nrog cov nplaim taws- rov kho dua tshiab muaj rau cov kev pheej hmoo siab ua haujlwm tshwj xeeb.
Kev sib koom ua ke
Technical Data Sheets (TDS) thiab Material Safety Data Sheets (MSDS) muab tam sim ntawd rau engineering xa daim ntawv kos npe -tawm.
